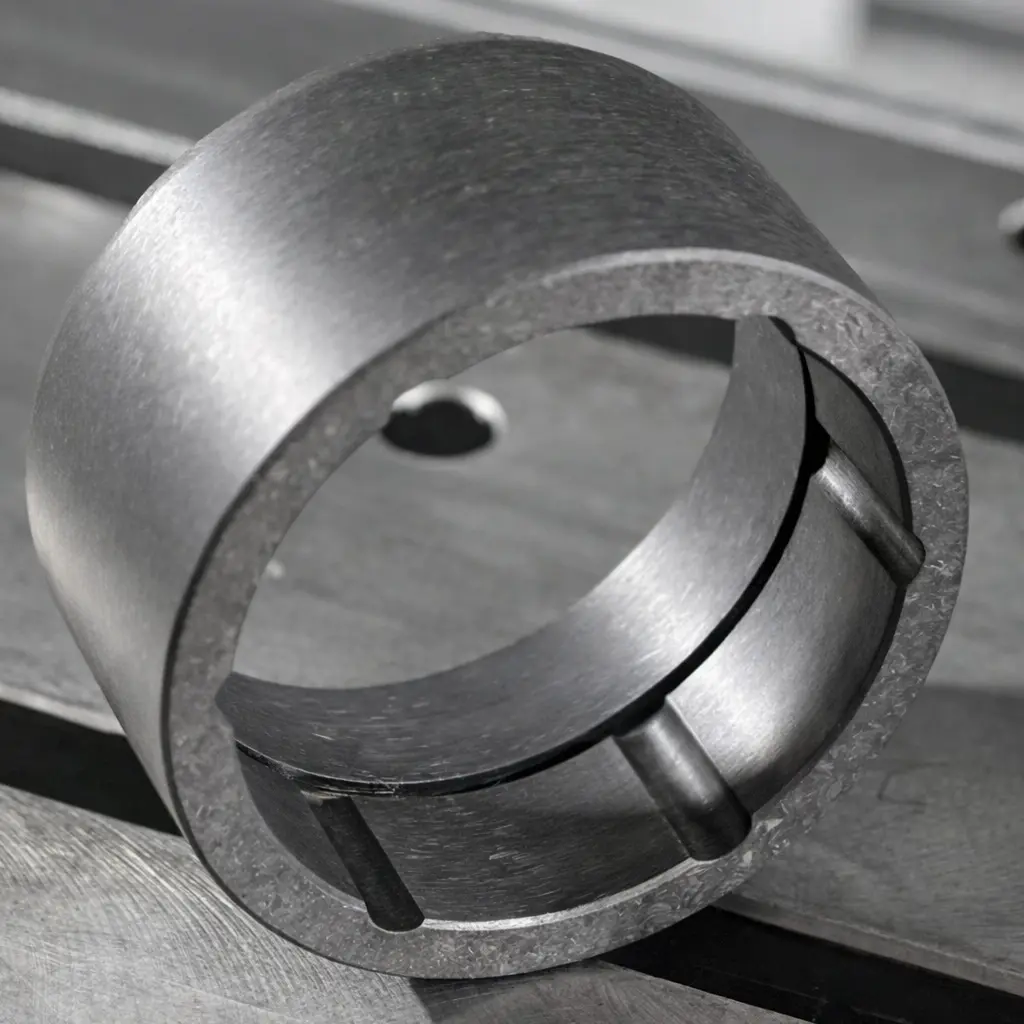

PEEK Bearings, Wear rings and Seals

Finished parts and billets engineered to replace metal components and improve MTBR, stability, and efficiency in demanding applications.

Developed by rotating equipment specialists. Trusted in critical industries worldwide since 2006.

Get a Quote Contact Engineer

Unexpected downtimes

Wear parts need to perform at 100% until the next scheduled repair, or else a very costly shutdown is needed.

Vibrations

Your equipement needs to run smoothly and with the least amount of vibrations to prevent early failure of critical parts.

Friction and Lubrication

To achieve the highest efficiency and performance, good lubrication and low friction is a must.

Wear rate

Mean Time Between Repair is critical component in big plants, and it is preffered to be as long as possible. A low wear rate can accomodate this.

Galling

When two rotating metal parts collide with eachother at high speeds, they can lead to immidiate failure.

Weight

Efficiency takes a hit with heavy components, so lighter materials without cutbacks are preffered.

Why PEEK composites outperform metals

Traditional metal components often fail due to wear, corrosion or thermal expansion in demanding environments.

Tenmax PEEK composites are engineered to deliver low friction, high wear resistance, and stable performance under extreme temperatures. This means these composite parts can significantly extend equipment life and reliability where conventional metals fall short.

Discuss how your metal parts can be changed to our PEEK composites with an engineer!

How we support your application

Review of operating conditions and part drawings

For us, it all starts with a drawing of the required part to be able to provide you with the best advice.

Analysis of loads, fluids and temperatures

Next, together with the operating conditions we can determine what materials would be satisfying your application requirements.

Material and design recommendation

We will discuss the options we have for your application, and when decided upon, we will provide required design changes if needed.

Delivery of finished parts or billets

Production of your parts will remain in-house, and can also be finish machined if needed.

Why Tenmax PEEK composites?

Performance

High wear resistance, low friction, and superior temperature capability for demanding conditions.

Compatibility

Suitable for almost any fluid and environment; remains stable under extreme pressures and temperatures.

Expertise

Over 15 years of specialized experience in rotating equipment. Our engineers provide design and implementation advice to ensure the best solution.

Business Impact

Longer MTBR, improved efficiency, and lower total cost of ownership for your operations.

Download Brochure

Overview of our engineered plastics

Material code	Max. operating temp [°C]	Min. operating temp [°C]	Ten. strength [MPa]	Comp. strength [MPa]	CTE [10^-6/K]	Friction [-]	Shore D Hardness [-]
TMC H60	280	-100	310	340	19.00	0.12	97
TMC 30	280	-100	210	250	20.00	0.18	89
TMC 7601	260	-100	100	160	25.00	0.11	90
TMC 7601-4	280	-120	100	160	30.00	0.11	89
TMC S25	280	-80	100	140	39.00	0.17	89
TMC S26	280	-120	95	130	30.00	0.11	90
TMC G9	280	-120	50	40	50.00	0.06	66
TMC W70	285	-100	2100	1400	2.30	0.13	98
TMC P50	300	-100	700	742	3.90	0.14	97

*Small deviations from the parameters mentioned above may occur due to processing conditions.

Industries using Tenmax materials

Our bearings, wear rings and seals are already proven to be superior in a wide
range of industries.

OIL & GAS

WATER TREATMENT

MACHINERY

CHEMICAL PRODUCTION

PAPER & PULP

POWER & ENERGY

FOOD INDUSTRY

WASTE WATER

DESALINATION

PHARMA INDUSTRY

MARINE AND SHIP BUILDING

Need help?

Share your drawing or operating details

The base of every inquiry is a detailed part drawing accompanied with the corresponding operating conditions.

Our engineers analyse your requirements

With their experience our engineers will analyse the provided requirements to determine the best suitable material for you.

You receive a specific, application-driven recommendation

Our engineers will send you their recommendation with a detailed explanation on how to implement our material in your equipement design.

Get in Touch

Feel free to contact us to discuss what Tenmax could do for your company! If you already know exactly what you need please provide us with the desired measurements and type of material and we will send you a quote right away. We normally respond in less than a hour!
